Brief
To study the existing product in its many context situations and to enhance its ergonomic usefulness.
Secondary Research
Hair dryers
Primary
Research
SemiStructured interviews
Anthropometric study
Ideation
3D Model
&
Prototype
Testing
process
What
A hairdryer is an electromechanical device that blows ambient or hot air over damp hair to speed the evaporation of water to dry the hair.
Alexander F. Godefrey designedthe first hair dryer in 1890, but it wasn't until the introduction of the first hand-held hair dryers in 1920 that the design underwent a significant transformation and went on to become an iconic product.
acute : 78 degrees
perpendicular : 90 degrees
obtuse : 102 degrees
In the current market, there are mainly 3 types of grips available with respect to the angle of the main body and the handle.
Grips
Holding from back
Use of power grip
Holding from the side
Use of power grip
Holding from the front
Use of power grip
Holding the main body
Use of power grip
A qualitative research was carried out to understand the grip and comfort the existing hair dryers provide.
MAJOR PROBLEMS
-
Weight distribution
-
Doesn’t give a sense of direction with power grip
-
Small grip
-
Thumb support
-
Placement of buttons.
"Hard to use with the current types of available grips when drying the back part of the head"
Pressure Points
Wrist : radial/ulnar deviation & pronation/supination
Activity : giving the hair dryer direction
Thumb :extrusion & flexion
Activity : operating switches (buttons)
Power grip
Precision grip

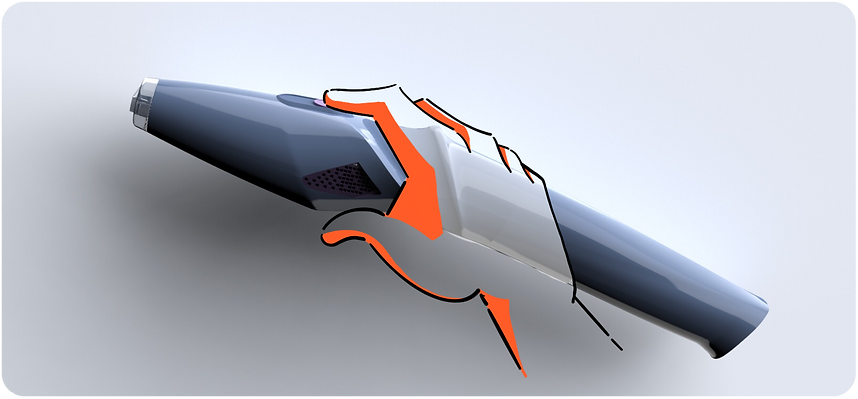

Converting power grip into precision grip while using the product to add better directional sense and weight distribution.
Ideations
Ergonomic Hair Dryer
Doux
Elegance meets Comfort
Mouth
Body
Switch
Air inlet
Grip
Air inlet
Warm air is thrown out of the mouth
Motor and coil makes the air warm
Fan blades increases the speed of air
Fan blades increases the speed of air
MECHANISM
Colour palette
#60A197
#667A9D
#84669D
Ergonomical Handle - Better Directional Sense
Precise Grip - Better Control
